Fire Rated Sliding Doors
Fire Rated Sliding Doors
Envirotech Systems Limited is one of India’s leading manufacturers and suppliers of Fire Rated Sliding Steel Doors, offering high-performance solutions designed to enhance safety in commercial, industrial, and institutional buildings.
With a strong focus on innovation, durability, and safety compliance, our fire-rated sliding doors are engineered to provide reliable protection against fire and heat, while also maintaining ease of access and aesthetic appeal.
Envirotech Fire Rated Sliding Doors are specially designed to withstand high temperatures and prevent the spread of fire and smoke. These doors are an essential component for any fire safety plan, helping to compartmentalize buildings and protect life and property during emergencies.

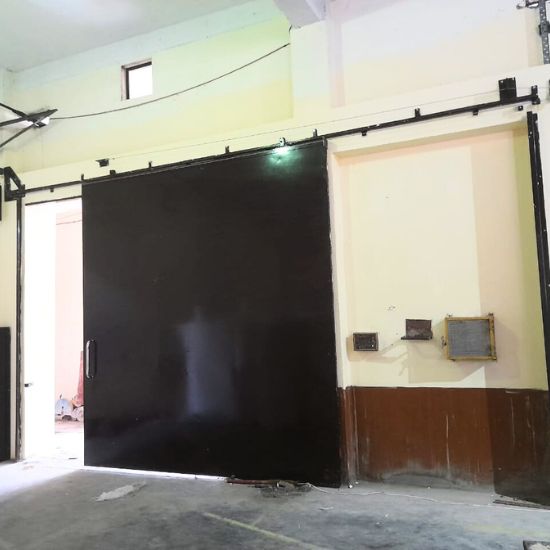

Fire Rated Sliding Door With Counter Weight
Envirotech Fire Rated Sliding Door with Counter Weight is a reliable solution designed to provide optimal fire protection while ensuring ease of operation. Engineered to meet the highest safety standards, this door is a key component in any building requiring enhanced fire protection. Constructed with high-quality materials, it offers exceptional fire resistance, effectively containing fire and smoke for a specified duration. The door features a counterweight system that allows for smooth and controlled sliding action, ensuring reliable operation even in the event of a power failure.
Its Sliding Mechanism Makes it ideal for areas where space conservation is important. Built to withstand harsh environments, the door is designed for long-term use, delivering consistent performance over time. Additionally, it can be customized to meet specific architectural and safety requirements, including size, finish, and fire rating specifications. Suitable for a wide range of applications such as industrial facilities, commercial buildings, warehouses, hospitals, and educational institutions, the Envirotech Fire Rated Sliding Door with Counter Weight reflects Envirotech’s commitment to quality and safety.
Technical Specification
- Door Type: Fire rated sliding Door
- Door Size: Customize
- Door Panel: The sandwich panel is constructed with GI pre-coated sheets and filled with Rockwool/Mineral wool insulation, The door panel has a thickness of 46mm or customize and a density of 80kg/m³ or more.
- Fire Rating: 30 Minutes / 60 Minutes / 120 Minutes
- Opening Direction: Horizontal
- Comply To: BS: 476 (Part 20 & 22)
- Mounting Location: Inside / outside
- Door seal: Overlapping of 100 mm in height and 200 mm in width
- Door Mounting: Top Mounted Heavy Duty Galvanized track
- Operation through: Wire rope with counter weight mechanism
- Surface Finish: Powder coated (Available in any RAL colour as required).
- Working mechanism: Operates using a counterweight mechanism, The door is activated by a fusible link.
Accessories (Optional)
- Thermal Fusible link
- Smoke detector
- Lock Arrangement
- Fire Rated Vision Panel
Features of Fire Rated Sliding Door with Counter Weight
Constructed with high-quality fire-resistant materials, the door effectively contains fire and smoke, meeting stringent safety regulations.
The door features a counterweight mechanism that ensures smooth and controlled sliding, allowing for easy operation even during power outages.
The sliding mechanism maximizes space, making it ideal for areas where space is limited.
Built to withstand harsh environments, the door is designed for long-term use, ensuring consistent and reliable performance.
The door can be customized to meet specific requirements, including size, finish, and fire rating, to suit various needs.
The door can be configured for either manual or automatic operation, providing flexibility based on the specific needs of the facility.
Designed for easy maintenance, ensuring longevity and consistent performance with minimal upkeep.
Meets or exceeds industry standards for fire-rated doors, providing reliable protection in critical situations.
🔥 Applications of Fire Rated Sliding Doors with Counter Weight
Fire Rated Sliding Door With Counter Weight is widely used across commercial, industrial, and residential spaces to enhance fire safety. It is ideal for stairwells, corridors, emergency exits, data centers, hospitals, hotels, and high-rise buildings.
